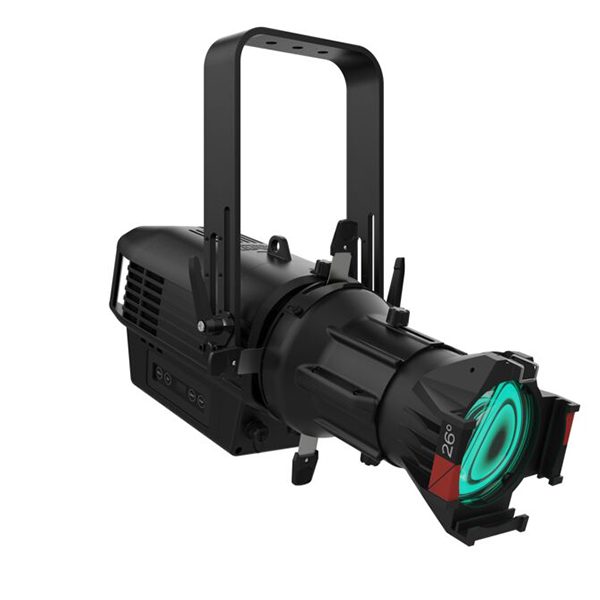

OVATION-REVE-E-3-IP-RIGHT
OVATION-REVE-E-3-IP-left

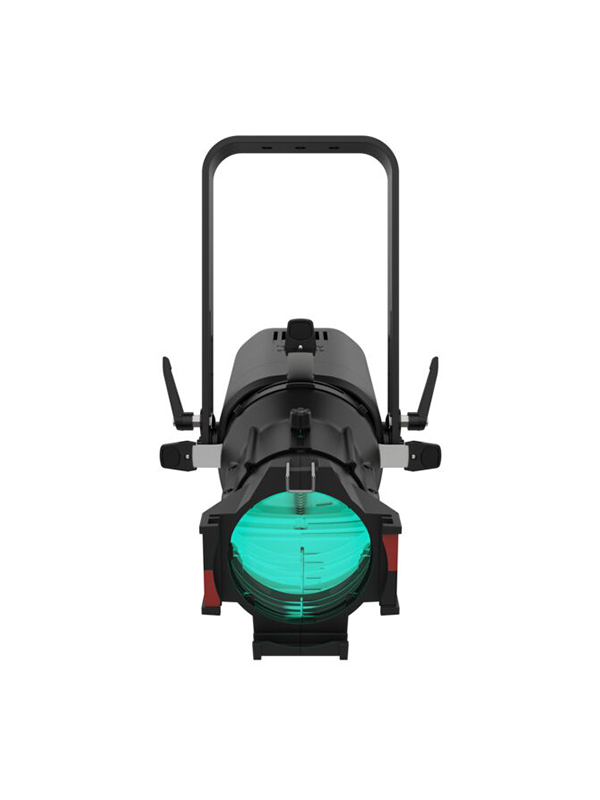

OVATION-REVE-E-3-IP-front

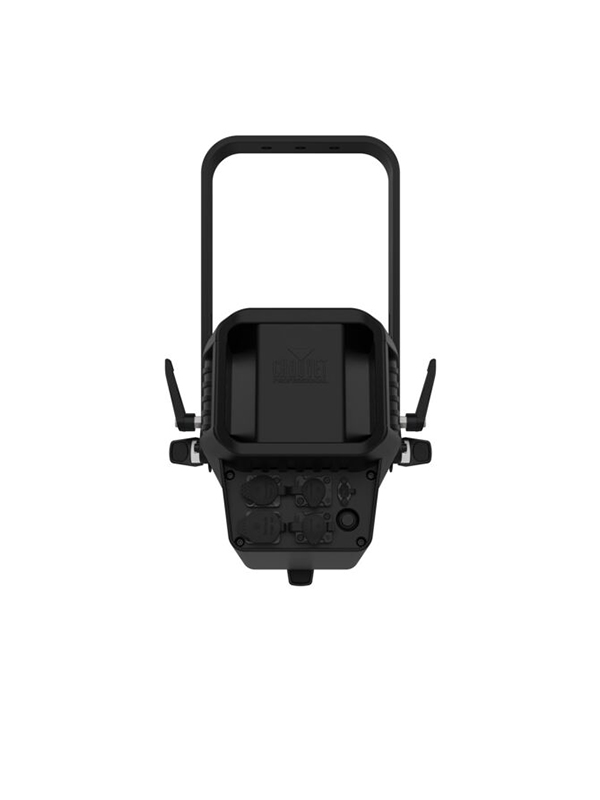

OVATION-REVE-E-3-IP-back
OVATION-REVE-E-3-IP-RIGHT
OVATION-REVE-E-3-IP-left
OVATION-REVE-E-3-IP-front
OVATION-REVE-E-3-IP-back

CHAUVET PROFESSIONAL

Ovation Rêve E-3 IP – No Lens

$2,816.00

Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.

$
SKU: OVATIONREVEE3IP Category: Tags: , , , ,

All fixture orders are shipped from Chauvet FL, customgobo.com and Contemporary Lights are not responsible for the order after it is picked up by the shipping company. Customgobo.com or Contemporary Lights are not responsible for delays due to Act of God, weather, incomplete or inaccurate address supplied by customer.

AT A GLANCE

  • Full-spectrum, high-power LED ERS-style lighting fixture for theatre, film, and production
  • Fully IP65 rated for seasonal use indoors or out
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio, film, and theatre applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
  • Innovative adjustable yoke for mounting in low clearance areas
  • Direct power/data connection and control options for the Ovation GR-1 gobo rotator
  • USB port for fixture software updates

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only, yoke up): 20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm)
  • Dimensions (w/5° lens extended, yoke up): 42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm)
  • Dimensions (w/10° lens extended, yoke up): 33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm)
  • Dimensions (w/14° lens extended, yoke up): 30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm)
  • Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm)
  • Dimensions (w/15°–30° lens, yoke up): 33.75 x 12.71 x 19.75 in (857.25 x 323 x 501.7 mm)
  • Dimensions (w/25°–50° lens, yoke up): 26.5 x 12.71 x 19.75 in (673.1x 323 x 501.7 mm)
  • Weight: 20.6 lb (9.34 kg)
  • Weight (w/5° lens): 25.2 lb (11.43 kg)
  • Weight (w/10° lens): 23.8 lb (10.79 kg)
  • Weight (w/14° lens): 26 lb (11.79 kg)
  • Weight (w/26° lens): 24.4 lb (11.06 kg)
  • Weight (w/15°–30° lens): 30.2 lb (13.69 kg)
  • Weight (w/25°–50° lens): 26.8 lb ( 12.15 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium alloy
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)



CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: Type-C USB



CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
  • Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)



ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
  • Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz
  • Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz
  • Power and Current: 342 W, 1.555 A @ 230 V, 50 Hz



CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



WHAT'S INCLUDED

  • Ovation Rêve E-3 IP
  • Seetronic Powerkon power cable
  • Ovation Metal Gobo Holder
  • Soft Focus Filter



REQUIRED ACCESSORIES

  • Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
